Lamborghini Diablo (1990-1998) - VORDERRADAUFHÄNGUNG (GÌLTIG FÌR DIE VERSION JUNI 1992)

Sehen Sie sich die Explosionszeichnung an, um das gesuchte Teil zu finden:
  • Sie können das Diagramm durch Ziehen neu positionieren
  • Sie können in das Diagramm hinein- und herauszoomen, indem Sie einen Bildlauf durchführen, es festhalten oder die and buttons
  • Sie können auf einen Hotspot 1 im Teilediagramm klicken, um das Teil in der Tabelle zu finden
Teil Schlüssel
IN
VORRÄTIG
AS
DEMNÄCHST EINTREFFEND
TO
AUF BESTELLUNG
PE
BITTE ANFRAGEN

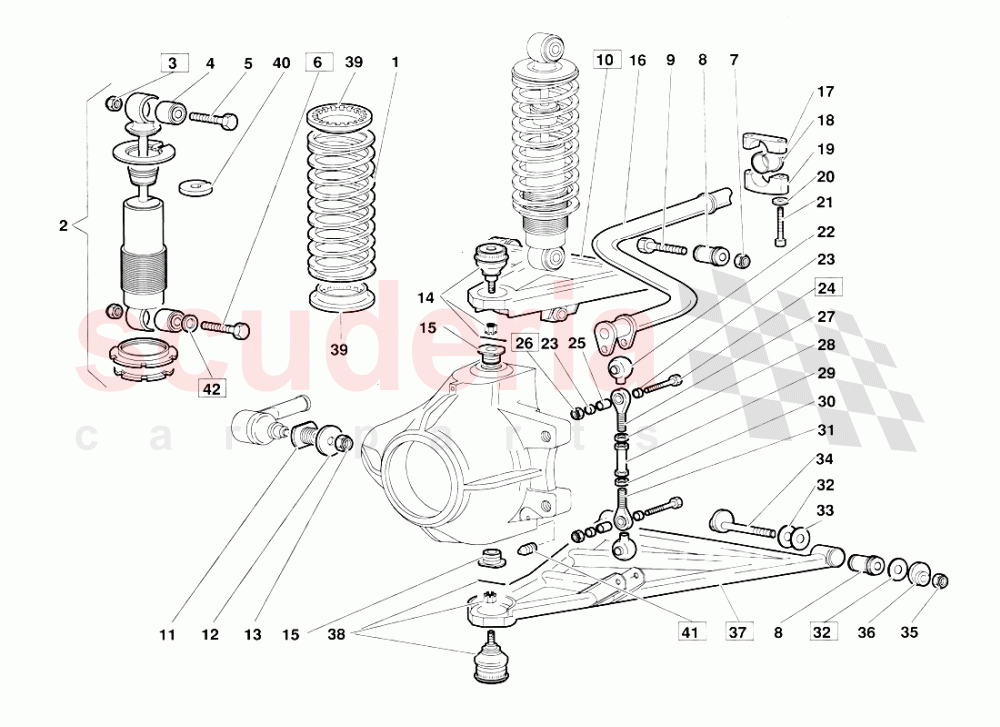

Front Suspension (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998) Diagram Zum Vergrößern antippen
# Details zum Teil Preis
(je)		 Menge auf
Diagramm		 Schlüssel Hinzufügen zum
Warenkorb
001 5126155
FRÌHLING
(Valid for June 1992 version) MOLLA AMMORTIZZATORE ANTERIORE 		$391.65 2
TO
002 5129802
STOSSDÄMPFER
(Valid for June 1992 version) AMMORTIZZATORE ANTERIORE 		$1,069.41 2
TO

WHT003355

MUTTER M12X1,25

from $14.50

004 410512383
FLEXIBLE BUCHSE 		$569.31 4
TO
005 8101259
SCHRAUBE
(Valid for June 1992 version) VITE 		$14.25 2
TO
006 5133229
SCHRAUBE
(Valid for June 1992 version) VITE (sostotuisce il 0081 01 268) 		$7.00 (9.1% off) 2
TO
008 8921206
ELASTISCHE BUCHSE
(Valid for June 1992 version) BOCCOLA ELASTICA 		$48.66 8
TO
009 8101269
SCHRAUBE
(Valid for June 1992 version) VITE 		$4.88 4
TO
010 5129602
ARM
(Valid for June 1992 version) BRACCIO SUPERIORE DX (fino 12677) 		- 1
PE
Erkundigen
010 5133344
ARM
(Valid for June 1992 version) BRACCIO SUPERIORE DX (dalla 12678) (Particolare intercambiabile) 		$1,541.91 1
TO
010 5129603
ARM
(Valid for June 1992 version) BRACCIO SUPERIORE SX (fino 12677) 		$616.74 1
TO
010 5133345
ARM
(Valid for June 1992 version) BRACCIO SUPERIORE SX (dalla 12678) (Particolare intercambiabile) 		$1,619.71 1
TO
011 5129541
BUCHSE
(Valid for June 1992 version) BOCCOLA FILETTATA 		$43.60 2
TO
012 WHT000919
WASCHMITTEL 		$13.80 2
TO
013 8201003
MUTTER
(Valid for June 1992 version) DADO 		$3.28 2
TO
014 410407365
KUPPLUNG
(Valid for June 1992 version) TESTA A SNODO
IN 		$241.69 2
IN
015 410407171C
BUSCH
(Valid for June 1992 version) BOCCOLA FILETTATA 		$618.68 4
TO
016 5130255
STABILISATORSTAB
(Valid for June 1992 version) BARRA STABILIZZATRICE 		$1,307.08 1
TO
017 5230256
RETAINER
(Valid for June 1992 version) CAVALLOTTO SUPERIORE 		- 2
PE
Erkundigen
018 5238302
BUCHSE
(Valid for June 1992 version) BOCCOLA 		$135.86 4
TO
019 5230257
RETAINER
(Valid for June 1992 version) CAVALLOTTO INFERIORE 		- 2
PE
Erkundigen
020 8410602
WASCHMITTEL
(Valid for June 1992 version) RONDELLA
IN 		$43.45 4
IN
021 8700609
SCHRAUBE
(Valid for June 1992 version) VITE 		$0.49 (93.3% off) 4
TO
022 5109714
BOOT
(Valid for June 1992 version) CAPPUCCIO 		$24.21 4
TO
023 5227297
BUCHSE
(Valid for June 1992 version) BOCCOLA 		$29.78 8
TO
024 8100810
SCHRAUBE
(Valid for June 1992 version) VITE (dalla 12609 sostituisce 008100807) 		- 4
PE
Erkundigen
025 5227298
BUCHSE
(Valid for June 1992 version) BOCCOLA 		$16.18 (9.1% off) 4
TO
026 N0111849
MUTTER
(Valid for June 1992 version) DADO (dalla 12609 sostituisce 008200809)
IN 		$2.65 (63.4% off) 4
IN
027 417801931A
KUGELGELENK
(Valid for June 1992 version) GIUNTO SFERICO 		$236.43 2
TO
028 8201014
MUTTER
(Valid for June 1992 version) DADO 		$5.65 2
TO
029 5209770
VERBINDUNGSSTANGE
(Valid for June 1992 version) TIRANTE 		$105.13 (8.6% off) 2
TO
030 8201016
MUTTER
(Valid for June 1992 version) DADO 		$20.92 2
TO
031 5227295
KUGELGELENK
(Valid for June 1992 version) GIUNTO SFERICO 		$139.75 2
TO
032 410407295D
WASCHMITTEL
(Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 3 MM 		$27.34 1
TO
032 410407295C
2.5 MM AUSGLEICHSPLÄTTCHEN
(Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 2,5 MM 		$6.77 1
TO
032 410407295
1,0 MM EINSTELLSCHEIBE
(Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 1 MM 		$4.15 1
TO
032 410407295B
2,0 MM AUSGLEICHSPLÄTTCHEN
(Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 2 MM 		$6.13 1
TO
032 5133488
ZEICHEN
(Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 1,5 MM 		$3.13 1
TO

410407127A

SCHRAUBE

from $924.75

037 5133038
ARM
(Valid for June 1992 version) BRACCIO INFERIORE DX (dalla 12746) (Particolare intercambiabile se sostituito su entrambi i lati) 		$1,200.97 1
TO
037 5127023
ARM
(Valid for June 1992 version) BRACCIO INFERIORE DX (fino 12745) 		- 1
PE
Erkundigen
037 5127024
ARM
(Valid for June 1992 version) BRACCIO INFERIORE SX (fino 12745) 		- 1
PE
Erkundigen
037 5133039
ARM
(Valid for June 1992 version) BRACCIO INFERIORE SX (dalla 12746) (Particolare intercambiabile se sostituito su entrambi i lati) 		$1,200.97 4
TO
038 410407361B
KUPPLUNG
(Valid for June 1992 version) TESTA A SNODO 		$1,159.86 2
TO
039 410512385
GUMMI-RING 		$51.67 4
TO
040 5131484
ABSTANDSHALTER
(Valid for June 1992 version) DISTANZIALE 		$32.56 2
TO
041 8700606
SCHRAUBE
(Valid for June 1992 version) GRAND (dalla 12678) 		$0.55 (92.4% off) 4
TO
042 8401234
WASCHMITTEL
(Valid for June 1992 version) RONDELLA 		$1.57 (77.9% off) 6
TO
